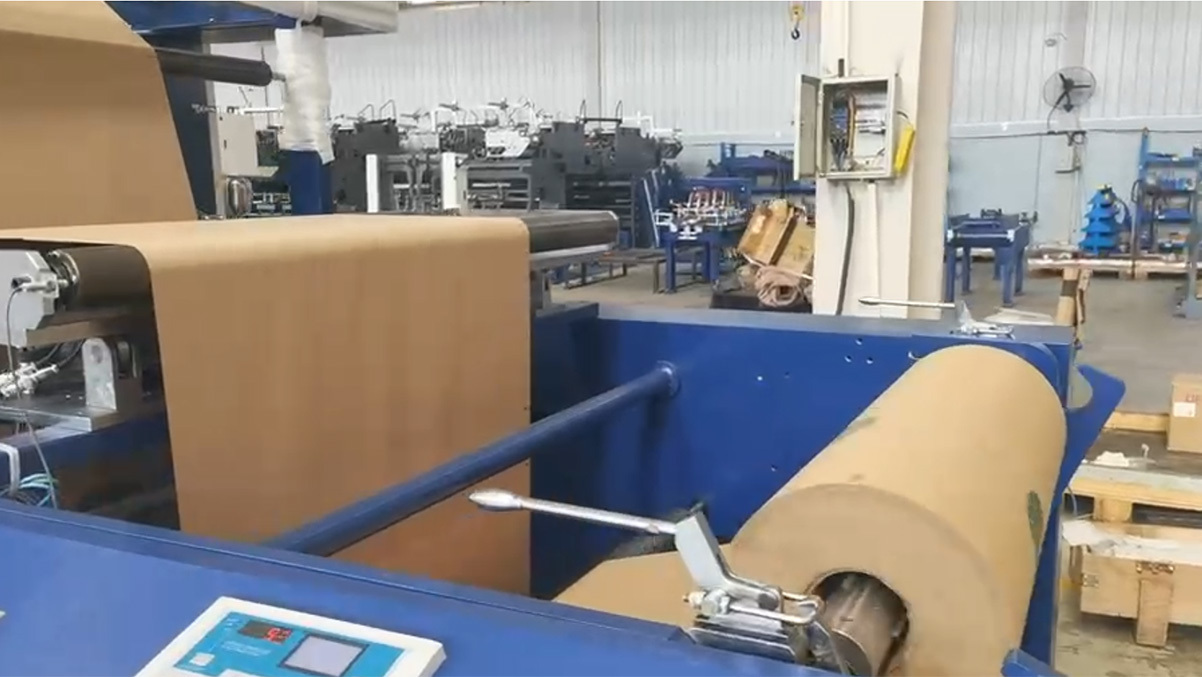

Automatic Reel Feding Paper Bag Making Machine With Square Bottom

This machine is specially designed to make paper-based environment-friendly paper bags,shopping bags and various paper bags with square bottom. This machine can form the paper bag in one process from the paper roll, side gluing, tube forming & cutting, bottom creasing & gluing and forming to bags collection.

Technical Data

Model	ZD-F230	ZD-F350	ZD-F450
Roll paper width	290-790 mm	420-1090mm	630-1730 mm
Max.dia of paper roll	φ1500 mm	φ1500 mm	φ1500 mm
Inside dia of paper roll	φ76 mm	φ76mm	φ76 mm
Paper gram	50/65-150g/m²	60-150g/m²	70-150g/m²
Finished bag width	80-230mm	130-350mm	220-450mm
Paper tube length	220-470mm	260-530mm	280-630mm
Bag bottom width	50-150mm	65-180mm	80-220mm
Max production speed	240 bags/min	220 bags/min	200 bags/min
Working air current	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa
Total power	380V 3P4L 15KW	380V 3P4L 15KW	380V 3P4L 18 KW
Weight	9000 KG	10000 KG	11000 KG
Overall dimensions	940036002000 mm	100037002100 mm	1050038002200 mm

Videos

Flow Chart
