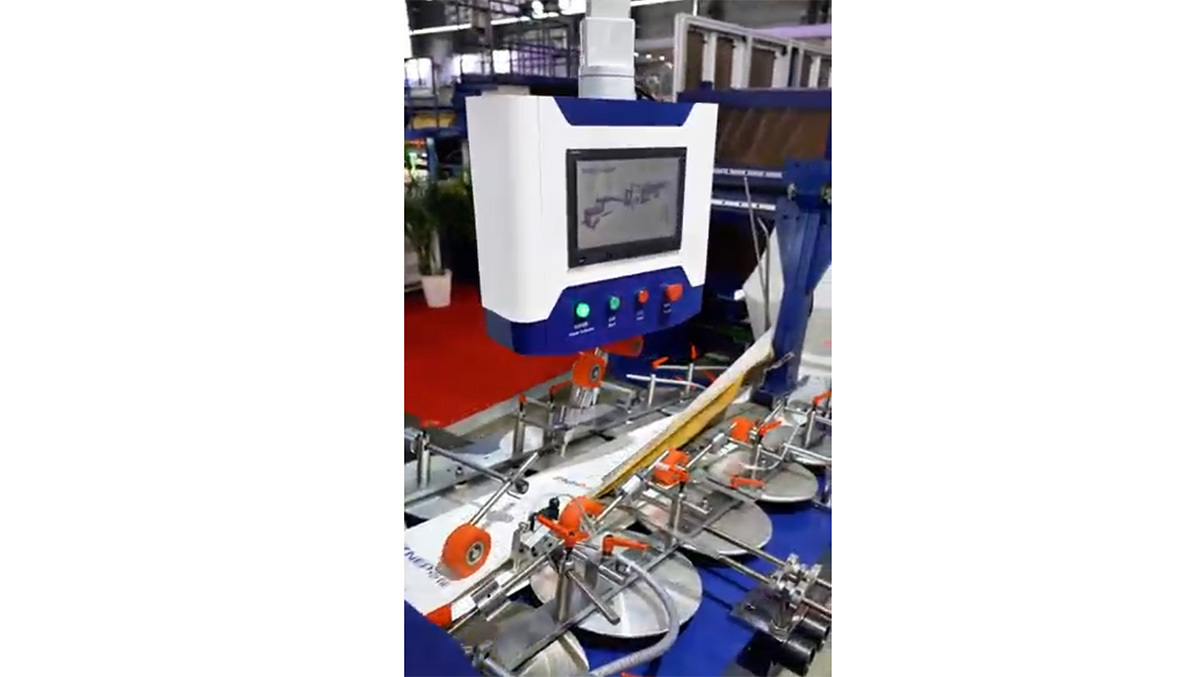

Automatic Paper Bag Making Machine With Twisted Rope/flat Handles And Flap

This machine is specially designed to make paper shopping bags with flap and twisted rope handles inline automatically. The handles will be delivered to the main machine after being produced by the handle making unit, and being cut and pasted to the paper. This machine can form the paper bag in one process from the plain or pre-printed reel paper, window cut and waste suction for flap, gluing & pasting, easy tearing line perforation, pre-cut at the rope position,gluing for handle patch and pasting, side gluing, tube forming & cutting, bottom creasing & gluing and forming to bags collection.

The whole machine is in the control of servo motors (made in Japan) to ensure the machine running speed and stability, also the time for sizes adjustment will be saved. It is featured in high precision and stability, simple maintenance and high efficiency. Thus it is an ideal equipment for printing houses and paper bag manufacturers.

Parameters

Model	ZD-FN380QT	ZD-FN550QT
Roll paper width	580-1270 mm	630-1730 mm
Max.dia of paper roll	φ1500 mm	φ1500 mm
Inside dia of paper roll	φ76 mm	φ76 mm
Paper gram	60/80-150g/m²	80/90-150g/m²
Finished bag width	200-380mm	220-550mm
Papertube length	(230+舌口)-(655mm含舌口&绳高)	(380+舌口)-(770mm含舌口&绳高)
Bag bottom width	75-240mm	80-300 mm
Flap height	30-80 mm	30-80 mm
Releasing paper width	15-35 mm	15-35 mm
Flap paper gram	50-100g/m²	50-100g/m²
Max production speed	120 bags/min	110 bags/min
Total power	380V 3P4L 56 KW	380V 3P4L 56 KW
Weight	27000 KG	29000 KG
Overall dimensions	1580069003400 mm	1760072003500 mm

Rope handle

Model	Q3	Q4	Q5
Handle rope height	90-120mm	90-120mm	90-120mm
Handle rope diameter	φ3-6 mm	φ3-6 mm	φ3-6 mm
Handle patch length	152mm	190mm	190mm
Handle patch width	35-50 mm	35-50 mm	35-50 mm
Handle rope distance	76mm	95mm	101mm
Paper patch roll dia	φ1200 mm	φ1200 mm	φ1200 mm
Paper patch roll	70-100 mm	70-100 mm	70-100 mm
Paper patch gram	80-150 g/m²	80-150 g/m²	80-150 g/m²

Flat handle

Model	B1	B2
Paper gram for handle	100-130g/m²	100-130g/m²
Flat rope width	12mm	15mm
Flat handle height	100mm	100mm
Flat rope distance	76mm	95mm
Dia of reel paper for handle	φ1200 mm	φ1200 mm
Paper patch gram	100-150g/m²	100-150g/m²
Roll paper (patch)width	φ1200 mm	φ1200 mm
Handle patch length	152mm	190mm
Handle patch width	35-50 mm	35-50 mm
