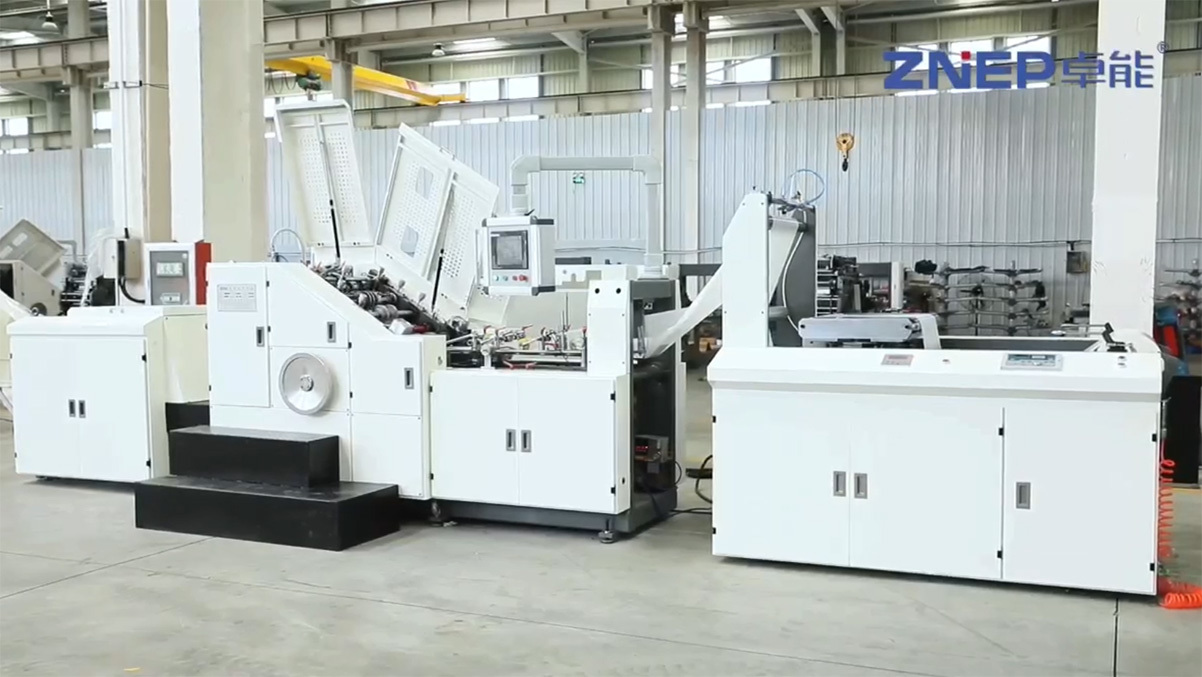

Automatic Paper Bag Making Machine With Rope/flat Handles

This machine is specially designed to make paper shopping bags with handles inline fully automatically. The handles will be delivered to the main machine after being produced by the handle making unit, and being cut and pasted to the paper. This machine can form the paper bag in one process from the paper roll, handle patching, side gluing, tube forming & cutting, bottom creasing & gluing and forming to bags collection.

The whole machine is in the control of servo motors (imported from Japan) to ensure the high precision and stability, simple maintenance and high efficiency. Thus it is an ideal equipment for printing houses and paper bag manufacturers.

Technical Data

Model	ZD-F230Q	ZD-F350Q	ZD-F450Q
Roll paper width	290-790 mm	420-1090mm	630-1730 mm
Max.dia of paper roll	φ1500 mm	φ1500 mm	φ1500 mm
Inside dia of paper roll	φ76 mm	φ76mm	φ76 mm
Paper gram	50/65-150g/m²	60/80-150g/m²	80/90-150g/m²
Finished bag width	80/110-230mm	130/180-350mm	220-450mm
Paper tube length	190- (450mm including rope height)	260-(530mm including rope height)	280-(630mm including rope height)
Bag bottom width	50-150mm	65-180mm	80-220mm
Max production speed	160 bags/min	150 bags/min	140 bags/min
Working air current	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa
Total power	380V3P4L 30KW	380V 3P4L 32KW	380V 3P4L 32 KW
Weight	18500 KG	19500 KG	20500 KG
Overall dimensions	1230058002700 mm	1340059002800 mm	1420060002900 mm

Rope handle

Model	Q1	Q2	Q3	Q4	Q5
Handle rope height	70-100mm	70-100mm	90-120mm	90-120mm	90-120mm
Handle rope diameter	φ2.5-6 mm	φ3-6 mm	φ3-6 mm	φ3-6 mm	φ3-6 mm
Handle patch length	95mm	114mm	152mm	190mm	190mm
Handle patch width	35-50 mm	35-50 mm	35-50 mm	35-50 mm	35-50 mm
Handle rope distance	47.5mm	57mm	76mm	95mm	101mm
Paper patch roll dia	φ1200 mm	φ1200 mm	φ1200 mm	φ1200 mm	φ1200 mm
Paper patch roll width	70-100 mm	70-100 mm	70-100 mm	70-100 mm	70-100 mm
Paper patch gram	80-150g/m²	80-150g/m²	80-150g/m²	80-150g/m²	80-150g/m²

Flat handle

Model	B1	B2
Paper gram for handle	100-130g/m²	100-130g/m²
Flat rope width	12mm	15mm
Flat handle height	100mm	100mm
Flat rope distance	76mm	95mm
Dia of reel paper for handle	φ1200 mm	φ1200 mm
Paper patch gram	100-150g/m²	100-150g/m²
Roll paper (patch)width	φ1200 mm	φ1200 mm
Handle patch length	152mm	190mm
Handle patch width	35-50 mm	35-50 mm
