Automatic Reel Feding Paper Bag Making Machine With Square Bottom

This machine is specially designed to make paper-based environment-friendly paper bags,shopping bags and various paper bags with square bottom. This machine can form the paper bag in one process from the paper roll, side gluing, tube forming & cutting, bottom creasing & gluing and forming to bags collection.

The whole machine is in the control of servo motors (imported from Japan) to ensure the high precision and stability, simple maintenance and high efficiency. Thus it is an ideal equipment for printing houses and paper bag manufacturers.

Technical Data

Model	ZD-FN230	ZD-FN380	ZD-FN550
Roll paper width	310-790 mm	580-1270mm	630-1730 mm
Max.dia of paper roll	φ1500 mm	φ1500 mm	φ1500 mm
Inside dia of paper roll	φ76 mm	φ76mm	φ76 mm
Paper gram	50-150g/m²	60-150g/m²	80-150g/m²
Finished bag width	90-230mm	200-380mm	220-550mm
Paper tube length	150-430mm	230-655mm	380-770mm
Bag bottom width	50-150mm	75-240mm	80-300mm
Max production speed	260 bags/min	200 bags/min	150 bags/min
Working air current	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa
Total power	380V 3P4L 15KW	380V 3P4L 18KW	380V 3P4L 18 KW
Weight	9000 KG	10500 KG	12000 KG
Overall dimensions	890038002000 mm	900041002100 mm	1150043002200 mm

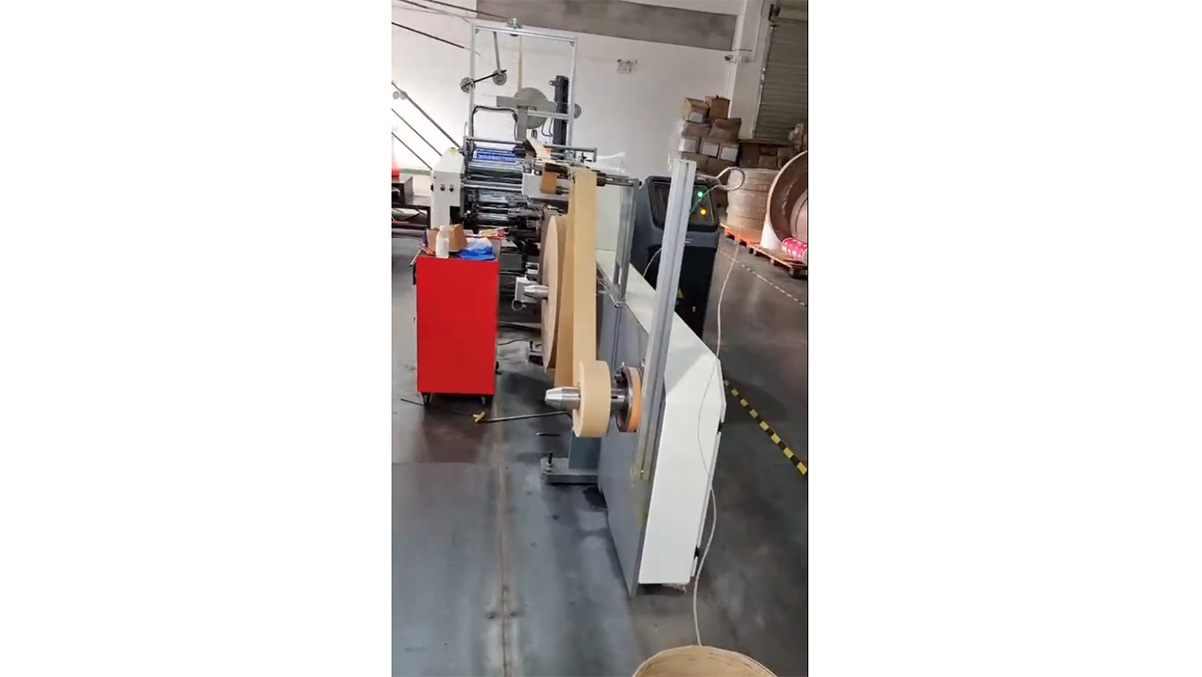

Videos
