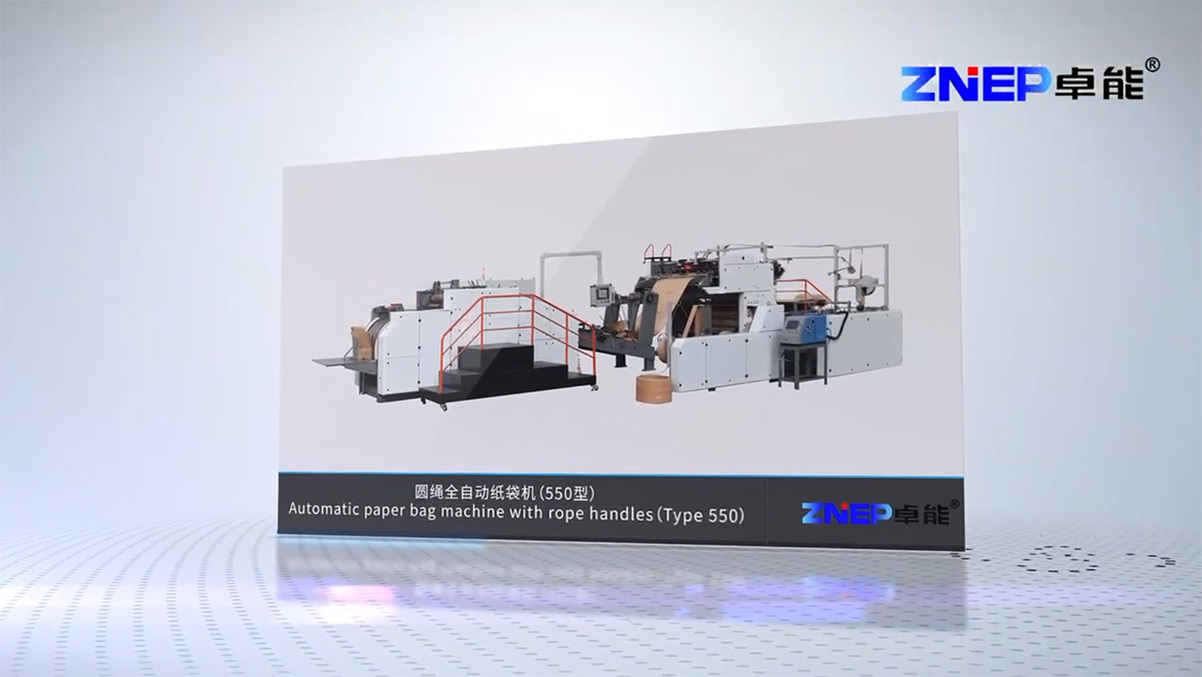

Automatic Paper Bag Making Machine With Rope/flat Handles

This machine is specially designed to make paper shopping bags with handles inline fully automatically. The handles will be delivered to the main machine after being produced by the handle making unit, and being cutand pasted to the paper. This machine can form the paper bag in one process from the paper roll, handle patching, side gluing, tube forming & cutting, bottom creasing & gluing and forming to bags collection.

The whole machine is in the control of servo motors (imported from Japan) to ensure the high precision and stability.simple maintenance and high efficiency. Thus it is an ideal equipment for printing houses and paper bag manufacturers.

Technical Data

Model	ZD-FN230Q	ZD-FN380Q	ZD-FN550Q
Roll paper width	310-790 mm	580-1270mm	630-1730 mm
Max.dia of paper roll	φ1500 mm	φ1500 mm	φ1500 mm
Inside dia of paper roll	φ76 mm	φ76mm	φ76 mm
Paper gram	50/65-150g/m²	60/80-150g/m²	80/90-150g/m²
Finished bag width	90/110-230mm	200-380mm	220-550mm
Paper tube length	150- (430mm including rope height)	230-(655mm including rope height)	380-(770mm including rope height)
Bag bottom width	50-150mm	75-240mm	80-300mm
Max production speed	200 bags/min	160 bags/min	130 bags/min
Working air current	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa
Total power	380V3P4L 30KW	380V 3P4L 30KW	380V 3P4L 30 KW
Weight	18500 KG	21500 KG	23500 KG
Overall dimensions	1200056002500 mm	1400062002700 mm	1600062002900 mm

Rope handle

Rope handle	Q1	Q2	Q3	Q4	Q5
Handle rope height	70-100mm	70-100mm	90-120mm	90-120mm	90-120mm
Handle rope diameter	φ2.5-6 mm	φ3-6 mm	φ3-6 mm	φ3-6 mm	φ3-6 mm
Handle patch length	95mm	114mm	152mm	190mm	190mm
Handle patch width	35-50 mm	35-50 mm	35-50 mm	35-50 mm	35-50 mm
Handle rope distance	47.5mm	57mm	76mm	95mm	101mm
Paper patch roll dia	φ1200 mm	φ1200 mm	φ1200 mm	φ1200 mm	φ1200 mm
Paper patch roll width	70-100 mm	70-100 mm	70-100 mm	70-100 mm	70-100 mm
Paper patch gram	80-150g/m²	80-150g/m²	80-150g/m²	80-150g/m²	80-150g/m²

Flat handle

Model	B1	B2
Paper gram for handle	100-130g/m²	100-130g/m²
Flat rope width	12mm	15mm
Flat handle height	100mm	100mm
Flat rope distance	76mm	95mm
Dia of reel paper for handle	φ1200 mm	φ1200 mm
Paper patch gram	100-150g/m²	100-150g/m²
Roll paper (patch)width	φ1200 mm	φ1200 mm
Handle patch length	152mm	190mm
Handle patch width	35-50 mm	35-50 mm
